MMIC Leaded Test Fixture Features

  • Automatic DUT width compensation
  • Grounding right under the DUT leads on the side of the package
  • Clamping force preset to remove operator influence
  • Height adjustment for DUT lead tolerance variations
  • Clamps that do not mark the device
  • Excellent tuning access
  • DB-9 connector for DC connections

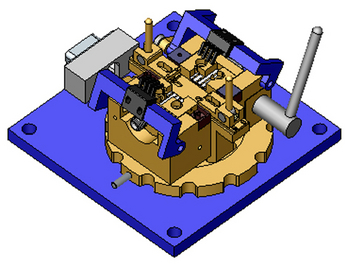

MMIC Leaded Test Fixtures

Altair Microwave MMIC test fixture family for leaded devices is available in a variety of sizes and lead configurations with operating frequencies up to 26 GHz.
