Test Fixtures for Industry
Livermore, CA

Mixer Test Fixture Features



  • Fast load and unload time. Loading the DUT is accomplished by simply depressing the stage lever, sliding the DUT into the fixture, and releasing the lever.
  • Contact pressure is preset to remove operator influence on the measurements.
  • Tweezer cutout allows for easy removal of the DUT after testing.
SMT Mixer Test Fixture

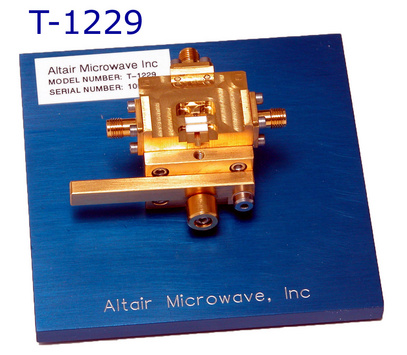

Altair Microwave Mixer test fixtures are available in a variety of sizes and frequency ranges up to 26 GHz. The T-1229 test fixture features three microwave connections with better than 18dB return loss up to 18 GHz.
