Test Fixtures for Industry
Livermore, CA

SOIC Test Fixture Features


  • One-handed operation to unlatch and open the test fixture cover.
  • Fast load and unload time. Loading of the device is accomplished by simply opening the cover, placing the device in the DUT guide, and closing the cover.
  • Individually adjustable spring-loaded push pins for each lead.
SOIC Test Fixtures

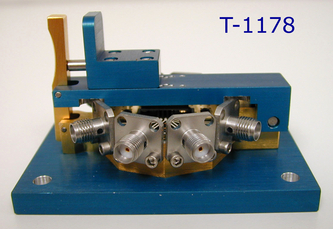

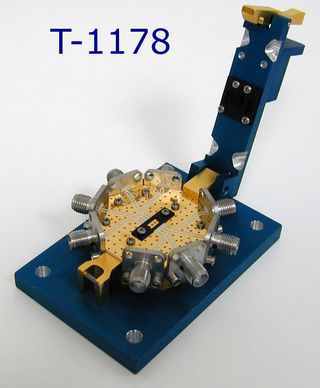

Altair Microwave SOIC family of test fixtures are available in a variety of sizes and lead configurations to suit your testing applications. The T-1178 test fixture pictured is for a SOIC-8 package with all leads active.
