  • Tuning access.
  • DC connections available with “DB” style connectors.
  • DC connections also available with blocking capacitor feedthrus.
Package Test Fixtures

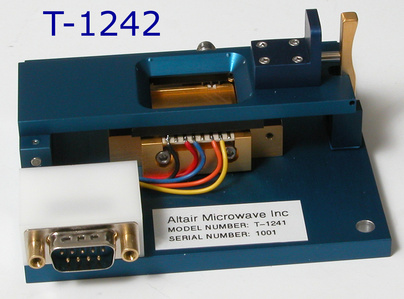

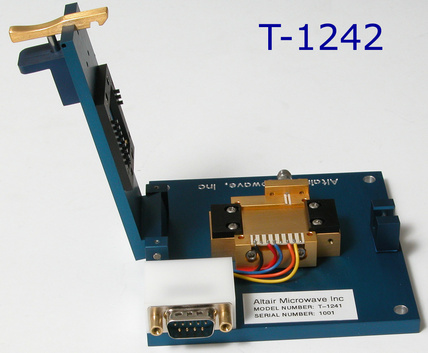

Altair Microwave family of package test fixtures is available in a variety of sizes, lead configurations (RF/DC), and frequency ranges to suit your testing applications. The T-1242 fixture shown features one (1) RF and four (4) DC connections.

Package Test Fixture Features


  • Fixture adjustable for lead height variations.
  • One-handed operation to unlatch and open the test fixture cover.
  • Fast load and unload time. Loading of the device is accomplished by simply opening the cover, placing the device in the DUT guide, and closing the cover.
  • Individually spring-loaded push pins for each lead.
